Styling Colors & Drawables w/ Theme Attributes

Posted

You’ve probably noticed that when you write something like:

context.getResources().getColor(R.color.some_color_resource_id);

Android Studio will give you a lint message warning you that the Resources#getColor(int) method was deprecated in Marshmallow in favor of the new, Theme-aware Resources#getColor(int, Theme) method. You also probably know by now that the easy alternative to avoiding this lint warning these days is to call:

ContextCompat.getColor(context, R.color.some_color_resource_id);

which under-the-hood is essentially just a shorthand way of writing:

if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
  return context.getResources().getColor(id, context.getTheme());
} else {
  return context.getResources().getColor(id);
}

Easy enough. But what is actually going on here? Why were these methods deprecated in the first place and what do the new Theme-aware methods have to offer that didn’t exist before?

The problem with Resources#getColor(int) & Resources#getColorStateList(int)

First, let’s be clear on what these old, deprecated methods actually do:

“When will these two methods break my code?”

To understand why these methods were deprecated in the first place, consider the ColorStateList declared in XML below. When this ColorStateList is applied to a TextView, its disabled and enabled text colors should take on the colors pointed to by the R.attr.colorAccent and R.attr.colorPrimary theme attributes respectively:

<!-- res/colors/button_text_csl.xml -->
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item android:color="?attr/colorAccent" android:state_enabled="false"/>
    <item android:color="?attr/colorPrimary"/>
</selector>

Now let’s say you want to obtain an instance of this ColorStateList programatically:

ColorStateList csl = context.getResources().getColorStateList(R.color.button_text_csl);

Perhaps surprisingly, the result of the above call is undefined! You’ll see a stack trace in your logcat output similar to the one below:

W/Resources: ColorStateList color/button_text_csl has unresolved theme attributes!
             Consider using Resources.getColorStateList(int, Theme)
             or Context.getColorStateList(int)
        at android.content.res.Resources.getColorStateList(Resources.java:1011)
        ...

“What went wrong?”

The problem is that Resources objects are not intrinsically linked to a specific Theme in your app, and as a result, they will be unable to resolve the values pointed to by theme attributes such as R.attr.colorAccent and R.attr.colorPrimary on their own. In fact, specifying theme attributes in ColorStateList XML files was not supported until API 23, which introduced two new methods for extracting ColorStateLists from XML:

  • Resources#getColor(int, Theme) returns the color associated with the passed in resource ID. If the resource ID points to a ColorStateList, the method will return the ColorStateList’s default color. Any theme attributes specified in the ColorStateList will be resolved using the passed in Theme argument.

  • Resources#getColorStateList(int, Theme) returns the ColorStateList associated with the passed in resource ID. Any theme attributes specified in the ColorStateList will be resolved using the passed in Theme argument.

Additional convenience methods were also added to Context and to the support library’s ResourcesCompat and ContextCompat classes as well.

“That stinks! How can I workaround these problems?”

EDIT: As of v24.0 of the AppCompat support library, you can now workaround all of these problems using the new AppCompatResources class! To extract a themed ColorStateList from XML, just use:

ColorStateList csl = AppCompatResources.getColorStateList(context, R.color.button_text_csl);

On API 23+, AppCompat will delegate the call to the corresponding framework method, and on earlier platforms it will manually parse the XML itself, resolving any theme attributes it encounters along the way. If that isn’t enough, it also backports the ColorStateList’s new android:alpha attribute as well (which was previously only available to devices running API 23 and above)!

Apps that support a minSdkVersion less than API 23 should prefer to use the static ContextCompat and ResourcesCompat helper methods in the support library, as Android lint suggests. However, note that no matter which methods you use, attempting to resolve theme attributes in a ColorStateList XML file WILL NEVER WORK on pre-Marshmallow devices!

But that stinks! What if you really want to use a theme attribute in your ColorStateList? Well, just because you can’t do it in XML, doesn’t mean you can’t do it in Java. :) Try resolving the theme attributes programatically, and then use them to construct the ColorStateList using a few extra lines of code instead. Check out the sample code below for some examples!

The problem with Resources#getDrawable(int)

You guessed it! The recently deprecated Resources#getDrawable(int) method shares pretty much the exact same problem as the Resources#getColor(int) and Resources#getColorStateList(int) methods discussed above. As a result, theme attributes in drawable XML files will not resolve properly prior to API 21, so if your app supports pre-Lollipop devices, either avoid theme attributes entirely or resolve them in your Java code and construct the Drawable programatically instead.

“I don’t believe you! Are there really no exceptions?”

Of course there is an exception, isn’t there always? :)

It turns out that similar to the AppCompatResources class, the VectorDrawableCompat and AnimatedVectorDrawableCompat classes were able to workaround these issues and are actually smart enough to resolve the theme attributes it detects in XML across all platform versions as well. For example, if you want to color your VectorDrawableCompat the standard shade of grey, you can reliably tint the drawable with ?attr/colorControlNormal while still maintaining backwards compatibility with older platform versions:

<vector
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:width="24dp"
    android:height="24dp"
    android:viewportWidth="24.0"
    android:viewportHeight="24.0"
    android:tint="?attr/colorControlNormal">

    <path
        android:pathData="..."
        android:fillColor="@android:color/white"/>
</vector>

(If you’re curious how this is implemented under-the-hood, the short answer is that the support library does their own custom XML parsing and uses the Theme#obtainStyledAttributes(AttributeSet, int[], int, int) method to resolve the theme attributes it encounters. Pretty cool!)

Pop quiz!

Let’s test our knowledge with a short example. Consider the following ColorStateList:

<!-- res/colors/button_text_csl.xml -->
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item android:color="?attr/colorAccent" android:state_enabled="false"/>
    <item android:color="?attr/colorPrimary"/>
</selector>

And assume you’re writing an app that declares the following themes:

<!-- res/values/themes.xml -->
<style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
    <item name="colorPrimary">@color/vanillared500</item>
    <item name="colorPrimaryDark">@color/vanillared700</item>
    <item name="colorAccent">@color/googgreen500</item>
</style>

<style name="CustomButtonTheme" parent="ThemeOverlay.AppCompat.Light">
    <item name="colorPrimary">@color/brown500</item>
    <item name="colorAccent">@color/yellow900</item>
</style>

And finally, assume that you have the following helper methods to resolve theme attributes and construct ColorStateLists programatically:

@ColorInt
private static int getThemeAttrColor(Context context, @AttrRes int colorAttr) {
  TypedArray array = context.obtainStyledAttributes(null, new int[]{colorAttr});
  try {
    return array.getColor(0, 0);
  } finally {
    array.recycle();
  }
}

private static ColorStateList createColorStateList(Context context) {
  return new ColorStateList(
      new int[][]{
          new int[]{-android.R.attr.state_enabled}, // Disabled state.
          StateSet.WILD_CARD,                       // Enabled state.
      },
      new int[]{
          getThemeAttrColor(context, R.attr.colorAccent),  // Disabled state.
          getThemeAttrColor(context, R.attr.colorPrimary), // Enabled state.
      });
}

Try to see if you can predict the enabled and disabled appearance of a button on both an API 19 and API 23 device in each of the following scenarios (for scenarios #5 and #8, assume that the button has been given a custom theme in XML using android:theme="@style/CustomButtonTheme"):

Resources res = ctx.getResources();

// (1)
int deprecatedTextColor = res.getColor(R.color.button_text_csl);
button1.setTextColor(deprecatedTextColor);

// (2)
ColorStateList deprecatedTextCsl = res.getColorStateList(R.color.button_text_csl);
button2.setTextColor(deprecatedTextCsl);

// (3)
int textColorXml =
    AppCompatResources.getColorStateList(ctx, R.color.button_text_csl).getDefaultColor();
button3.setTextColor(textColorXml);

// (4)
ColorStateList textCslXml = AppCompatResources.getColorStateList(ctx, R.color.button_text_csl);
button4.setTextColor(textCslXml);

// (5)
Context themedCtx = button5.getContext();
ColorStateList textCslXmlWithCustomTheme =
    AppCompatResources.getColorStateList(themedCtx, R.color.button_text_csl);
button5.setTextColor(textCslXmlWithCustomTheme);

// (6)
int textColorJava = getThemeAttrColor(ctx, R.attr.colorPrimary);
button6.setTextColor(textColorJava);

// (7)
ColorStateList textCslJava = createColorStateList(ctx);
button7.setTextColor(textCslJava);

// (8)
Context themedCtx = button8.getContext();
ColorStateList textCslJavaWithCustomTheme = createColorStateList(themedCtx);
button8.setTextColor(textCslJavaWithCustomTheme);

Solutions

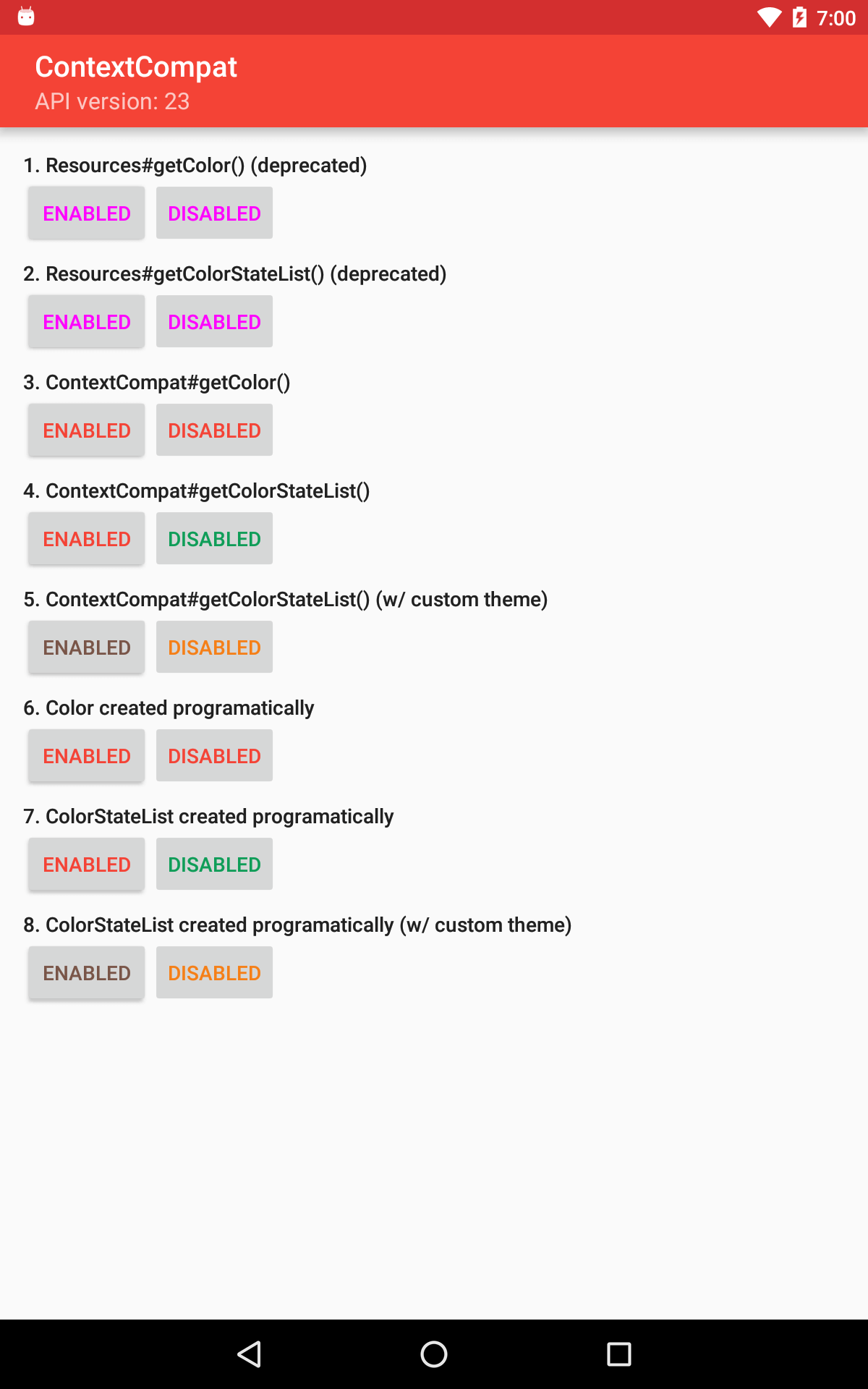

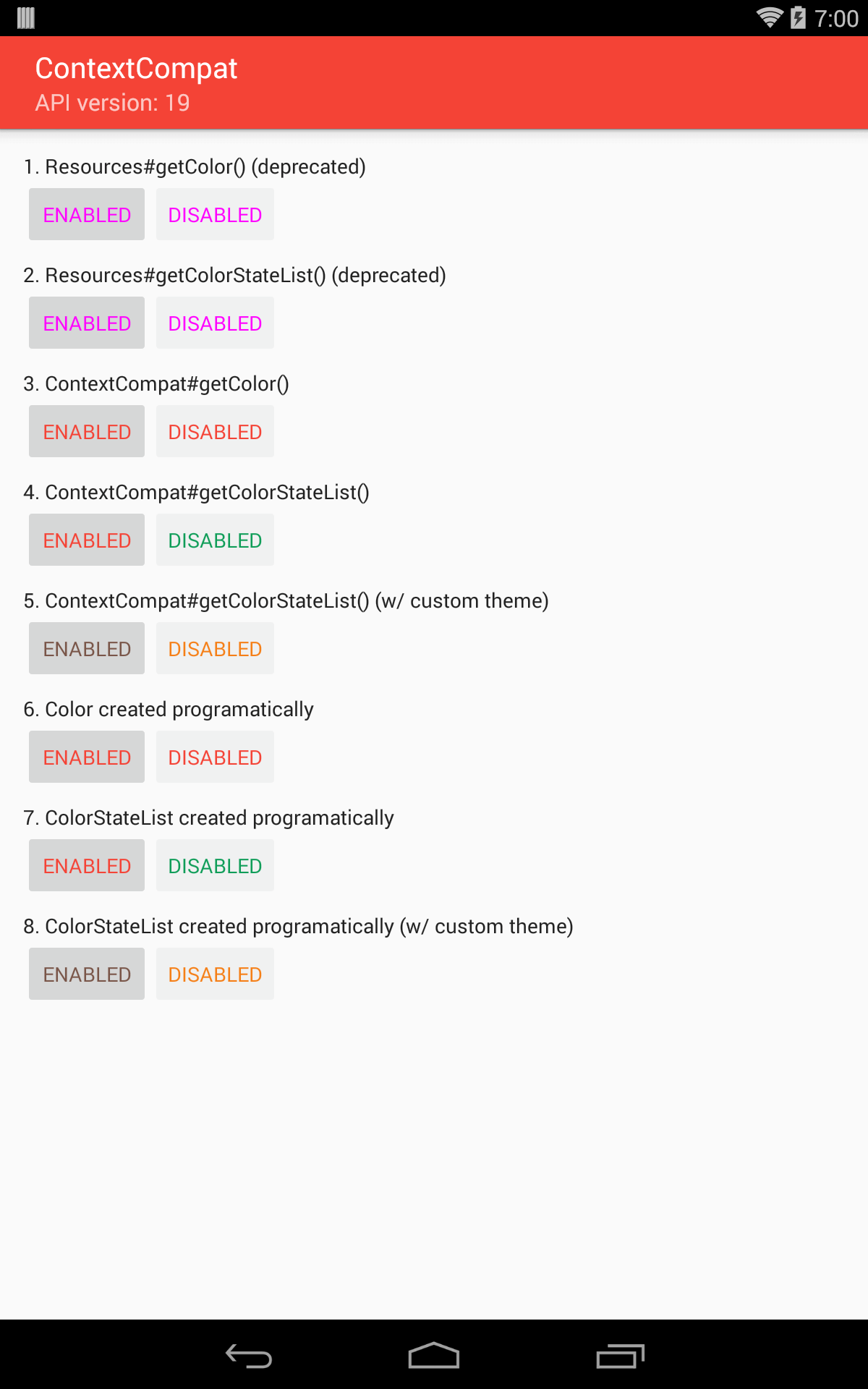

Here are the screenshots of what the buttons look like on API 19 vs. API 23 devices:

Note that there isn’t anything special about the weird pink color in the two screenshots. That’s just the “undefined behavior” that results when you try to resolve a theme attribute without a corresponding Theme. :)

As always, thanks for reading! Feel free to leave a comment if you have any questions, and don’t forget to +1 and/or share this blog post if you found it helpful! And check out the source code for these examples on GitHub as well!
